Standard DOE

Digigram offers various kinds of standard Diffractive Optical Elements( DOEs).  These standard products can help product developers lower the barriers to entry, speed up DOE product development, and increase product added value. The standard DOE includes Random Dots, Circle Dots, Parallel Lines, Cross, ViewFinder, Squares, Concentric Pattern, Rectangle, Line, Regular dots etc.. Particularly, the pseudo-random infrared dots pattern is very suitable for structured light stereoscopic imaging or 3D sensing. If you need diffractive diffuser, diffractive beam splitter or diffractive beam shaping products, please contact us.


The DOE structures are replicated onto the substrate like PET or PMMA. The standard substrate is PET with standard size of 5 mm in diameter or 5mm x 5mm and 0.188mm in thickness. PMMA with 1mm in thickness is available for some products. Customized dimension is also possible. Please ask before ordering. If the applied wavelength is different from the designed one, the zero order will be stronger and the diffraction pattern will be distorted.

All the standard DOE can be sold with our EEL laser modules. Please refer to the list below for the available TO-CAN laser modules.

Products whose F= ∞ are suitable for collimated laser beam.

Category: Random Dots, Circle Dots, Parallel Lines, Cross, ViewFinder, Squares, Concentric Pattern, Rectangle, Line, Regular dots & Others




Available TO-CAN Laser Modules

Item Wavelength Laser Power Output
1 515 nm 10 mW
2 635 nm 20mW
3 650 nm 5*mW, 10*mW, 200mW
4 830 nm 200*mW
5 850 nm 200*mW
6 940 nm 200*mW

*Power output of the laser chip.  The power output after packaging is 50~70% of the laser chip power.



Random Dots

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet
DTC-RD01 850 nm Dots: 5,000

Image Ratio: 4:3
50° x 38° 4x4 mm F= ∞
DTC-RD02 850 nm Dots: 10,000

Image Ratio: 4:3
59° x 46° 4x4 mm F= ∞
DTC-RD03 850 nm Dots: 30,000

Image Ratio: 4:3
59° x 46° 4x4 mm F= ∞
DTC-RD04 850 nm Dots: 30,000

Image Ratio: 4:3
67.7° x 53.4° 4x4 mm F= ∞
DTC-RD09 830 nm Dots: 15,000

Image Ratio: 4:3
60° x 46.8° 5x5 mm F= ∞
DTC-RD10 830 nm Dots: 30,000

Image Ratio: 4:3
70° x 55.4° 5x5 mm F= ∞
DTC-RD11 830 nm Dots: 30,000

Image Ratio: 16:9
80° x 50.5° 5x5 mm F= ∞
DTC-RD12 940 nm Dots: 15,000

Image Ratio: 4:3
70° x 55.5° 5x5 mm F= ∞
DTC-RD13 940 nm Dots: 30,000

Image Ratio: 4:3
70° x 55.4° 5x5 mm F= ∞
DTC-RD14 940 nm Dots: 30,000

Image Ratio: 16:9
80° x 50.5° 5x5 mm F= ∞
DTC-RD15 850 nm Dots: 30,000

Image Ratio: 4:3
80° x 64.4° 6x6 mm F= ∞
DTC-RD16 850 nm Dots: 10,000

Image Ratio: 4:3
80° x 64.4° 6x6 mm F= ∞
DTC-RD17 650 nm Dots: 10,000

80° x 64° 6x6 mm F= ∞
DTC-RD18 650 nm Dots: 30,000

80° x 64° 6x6 mm F= ∞
DTC-AA-38k 940 nm Dots: 38,000 68° x 48.5° 4.5x4 mm F= ∞
DTC-AA-61k 940 nm Dots: 61,000

68° x 48.5° 4.5x4 mm F= ∞

Circle Dots

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet
DTC-01 650 nm Circle 8 Dots 7.15° x 7.15° 3.7x3.7 mm F= ∞
DTC-02 650 nm Circle 12 Dots 7.15° x 7.15° 3.7x3.7 mm F= ∞
DTC-03 650 nm Circle 16 Dots 7.15° x 7.15° 5x5 mm F= ∞
DTC-04 650 nm Circle 32 Dots 55° x 55° 5x5 mm F= ∞

Parallel Lines

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet

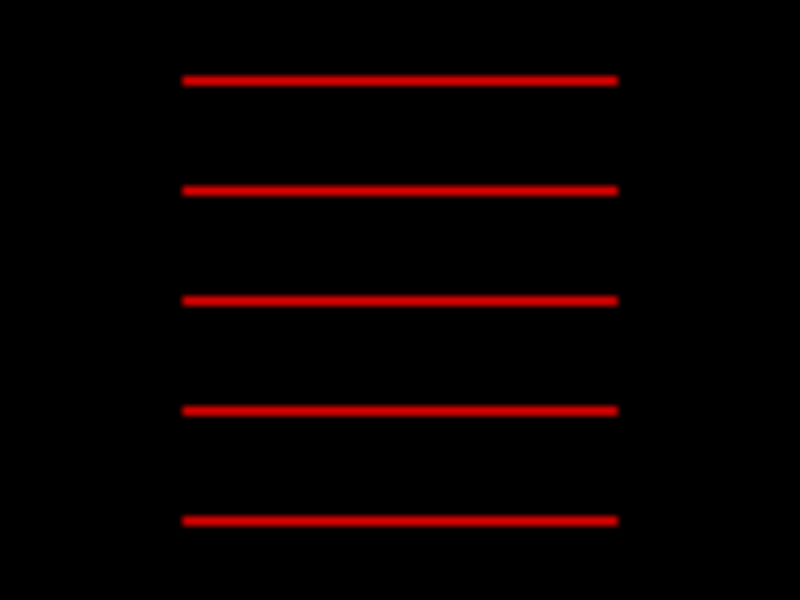

DTC-05 650 nm 5 Parallel Lines 15° x 15° 5x5 mm F= ∞
DTC-06 650 nm 7 Parallel Lines 31.7° x 15.4° 4x4 mm F= ∞
DTC-07 650 nm 15 Parallel Lines 40° x 40° 5x5 mm F= ∞
DTC-08 650 nm 25 Parallel Lines 26° x 26° 5x5 mm F= ∞

Cross

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet
DTC-12 650 nm Cross - 12 12° x 12° 5x5 mm F= ∞
DTC-13 650 nm Cross - 60 60° x 60° 5x5 mm F= ∞

ViewFinder

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet
DTC-17 650 nm ViewFinder 15° x 10° 5x5 mm F= ∞
DTC-18 650 nm ViewFinder 35° x 35° 5x5 mm F= ∞
DTC-19 650 nm ViewFinder 39.1° x 25.5° 5x5 mm F= ∞
DTC-20 650 nm ViewFinder 21° x 21° 5x5 mm F= ∞
DTC-23 635 nm ViewFinder 35° x 35° 4x4 mm F= ∞

Squares

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet
DTC-24 650 nm Squares - 10x10 50° x 50° 5x5 mm F= ∞
DTC-25 650 nm Squares - 60x60 30° x 30° 5x5 mm F= ∞
DTC-29 650 nm Square 30° x 30° 4x4 mm F= ∞

Concentric Pattern

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet
DTC-27 650 nm 5 Concentric Circles 30° x 30° 4x4 mm F= ∞
DTC-28 650 nm 7 Concentric Squares 39.1° x 39.1° 5x5 mm F= ∞

Rectangle

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet
DTC-30 650 nm Rectangle 37°x 25° 4x4 mm F= ∞

Line

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet
DTC-36 635 nm Single Line- 62 62° (H) Φ5 mm F= ∞

Regular Dots

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet
DTC-REGD01 650 nm Dots: 3,000 56° x 46.6° 6x6 mm F= ∞

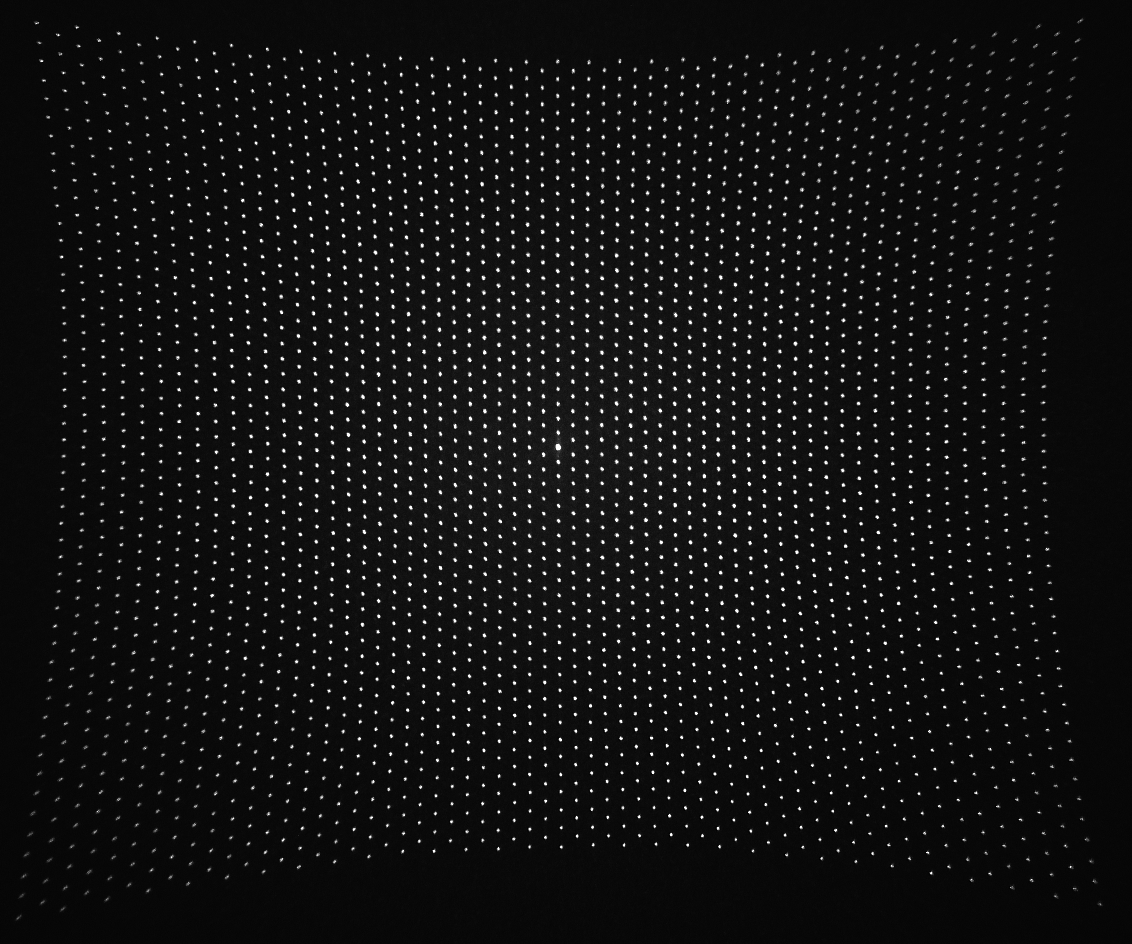

DTC-REGD01-850 850 nm Dots: 3,000 77.2° x 64.5° 6x6 mm F= ∞
DTC-REGD02 650 nm Dots: 4,320 68° x 56.6° 6x6 mm F= ∞

Others

Part number Wavelength Description FOV (H x V) Active Area Focal length Pattern Data sheet
DTC-32 650 nm Bar-Grid 7.2°x 7.2° 5x5 mm F= ∞
DTC-33 650 nm Virtual numeric keypad

Keyboard size: 65x85 mm

Projection height: 30 mm

Tilt angle: 75 deg

DOE focus on tilted plane
3.3x3.3 mm F= ∞
DTC-34 650 nm Virtual Keyboard

Keyboard Size: 250x100 mm

Projection Height: 50mm

Tilt Angle: ~72 deg

DOE focus on tilted plane

3.3x3.3 mm F= ∞
